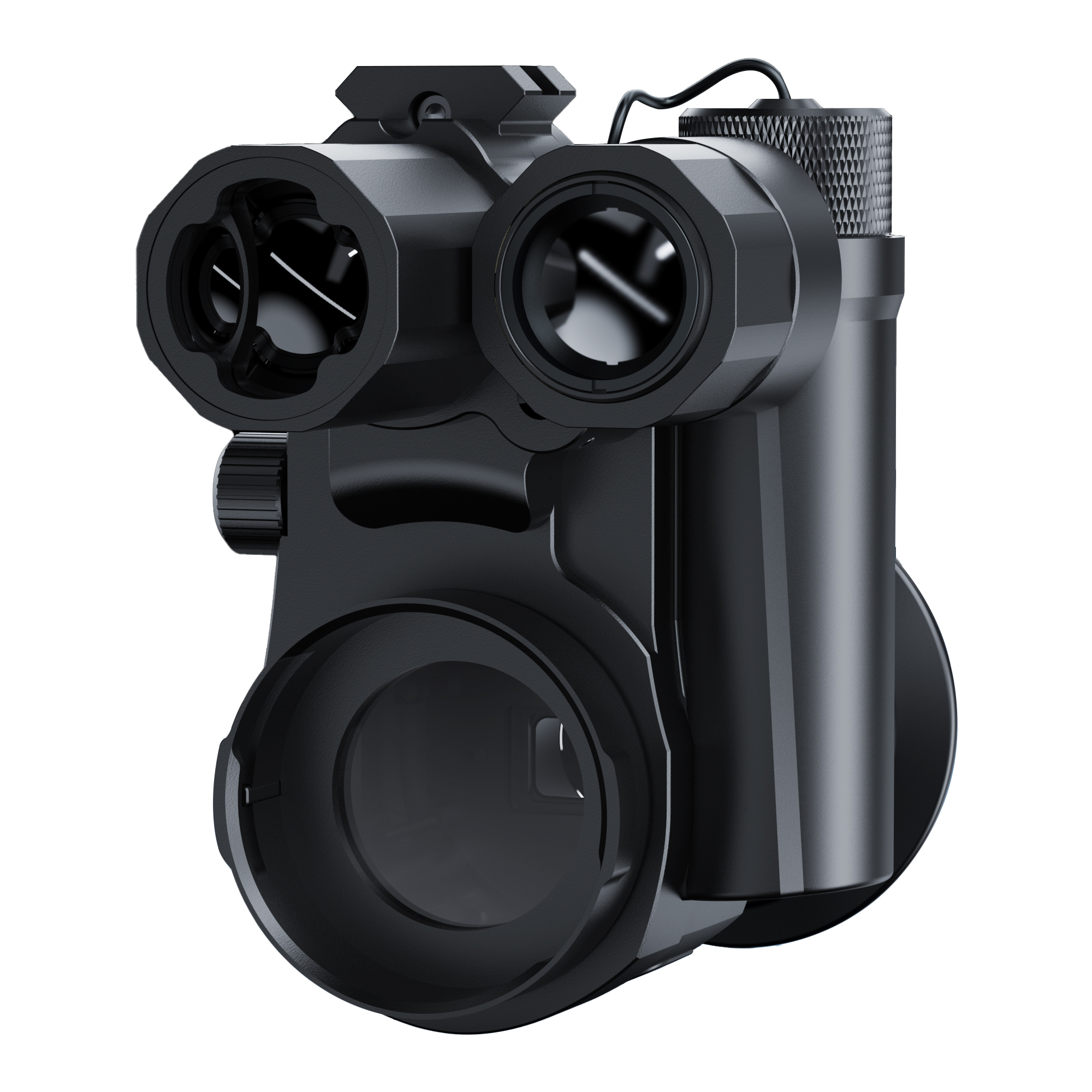

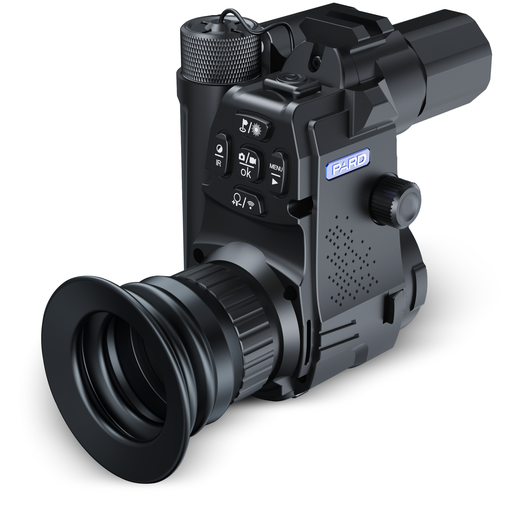

The NV007SP LRF features a 1024x768 OLED display for crisp, detailed imaging in darkness. Its built-in laser rangefinder provides accuracy up to 1312 yards (1200m), while the VCSEL IR illuminator—available in 850nm or 940nm—extends visibility up to 383 yards (350m).
Weighing just 10.9 oz (310g) and with a quick-disconnect mount, the NV007SP installs easily and is highly portable. Powered by a single 18650 battery, it delivers up to 6 hours of continuous operation and functions in temperatures from -13° to 104°F.
The scope includes 4x optical zoom, 2592x1944 photo capture, and 1920x1080 MP4 video recording at 30fps, saved to a removable 128GB micro SD card. Its IP67 rating ensures dustproof protection and water submersion up to 3 feet, making it a rugged and reliable solution for low-light operations.
- Models:
- NV007SP(LRF)
- Heading:
- Sensor
- Resolution(px):
- 2560*1440
- Sensitivity(lux):
- 0.001Lux
- Frame rate(fps):
- 30
- Heading:
- Optics
- Objective lens:
- 22.5mm
- Optical Magnification(x):
- 4x
- Digital zoom(x):
- 1x-3.5x
- PIP zoom(x):
- 2x
- Continuous digital zoom:
- 4x-28x
- Field of view (HxV) Horizontal:
- 22°
- Field of view (HxV) Vertical:
- 12°
- Field of view (HxV) Diagonal:
- 25°
- Eye relief(mm):
- 25
- Diopter adjustment:
- ±5D
- Focus range:
- 3cm-∞
- Adaptor diameter(mm):
- 45,48
- Heading:
- IR Illuminator
- IR Type:
- VCSEL
- IR power(w):
- 5
- IR illuminating level:
- 3 levels
- IR distance(m):
- 350
- IR Wavelength(nm):
- 850,940
- Heading:
- Display
- Type:
- OLED
- Resolution(px):
- 1024*768
- Reticle Style:
- -
- Reticle Color:
- -
- Color mode:
- Color, Black&white
- Heading:
- Photo / Video
- Photo resolution(px):
- 2592*1944
- Photo format:
- JPG
- Video resolution(px):
- 1920*1080
- Video format:
- MP4
- Storage(GB):
- TF card(128GB MAX)
- Heading:
- Main function
- LRF detection range(yds):
- 1200yds
- Red dot:
- Yes
- Self-activated recording:
- Yes
- Auto recording:
- Yes
- Loop recording:
- Yes
- Time stamp:
- Yes
- Record Audio:
- Yes
- Keyboard press sound:
- Yes
- Exposure compensation:
- Yes
- Heading:
- Interfaces
- USB Type-C:
- Yes
- HDMI Output:
- Yes
- Heading:
- Connections
- WiFi:
- Yes
- Supported Apps:
- PardVision
- Heading:
- Power Supply
- Battery type:
- 18650 Li-ion Battery
- Output voltage(V):
- 3.7
- Operating time(h,max):
- 8
- External power supply(V):
- USB Type-C
- Heading:
- Environmental characteristic
- Degree of protection:
- IP67
- Operating temp(°C):
- -25 – +40
- Recoil Power(J):
- 6000
- Heading:
- Material
- Housing:
- AL6061+Plastic
- Objective lens:
- Glass
- Heading:
- Measurement
- Product dimension(L x W x H, mm):
- 105*120*71, 105*134*71(LRF version)
