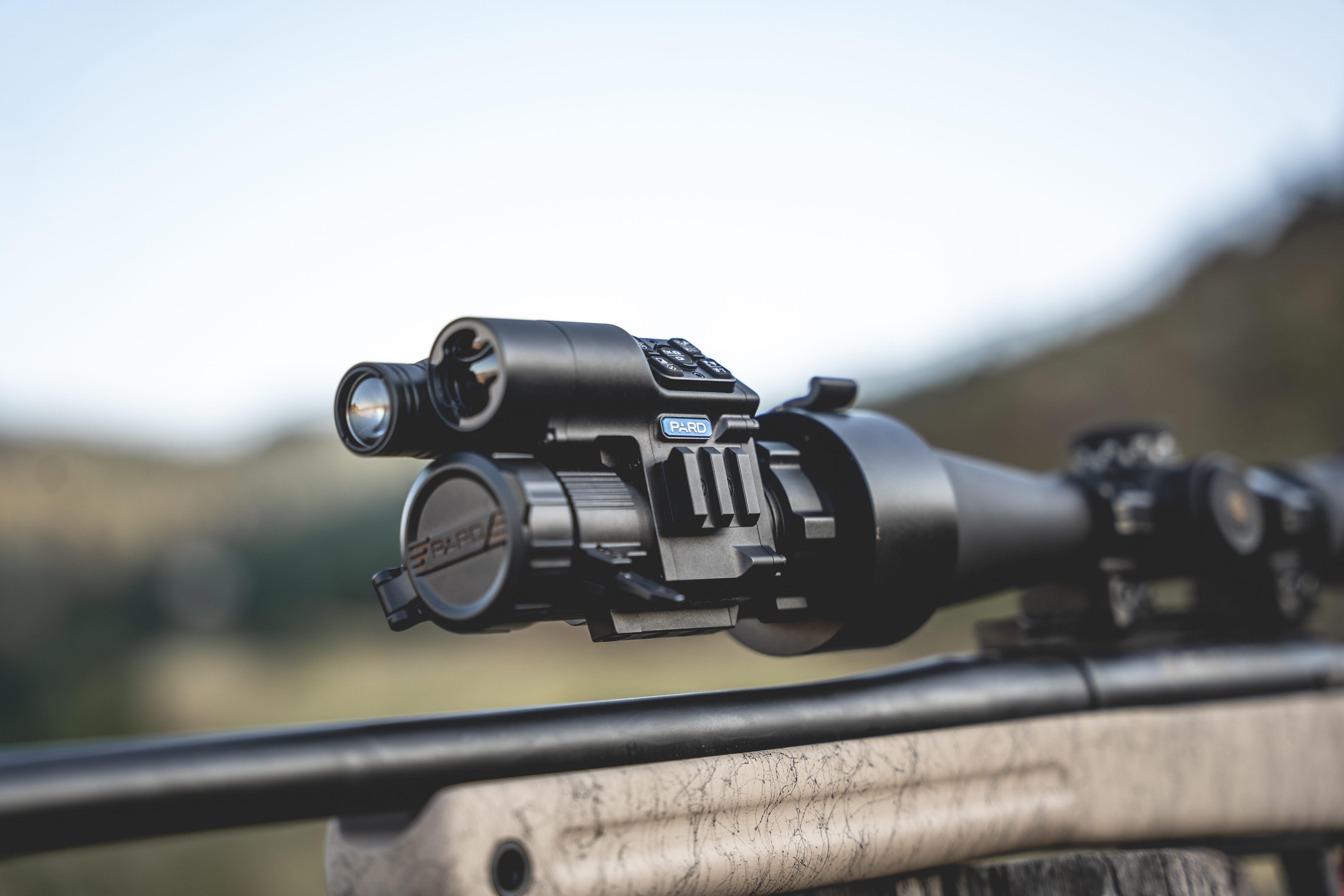

The FT34 is a multi-purpose thermal scope from PARD is a 3-in-1 device: it functions as a stand-alone scope with features like a laser range finder and ballistic calculator, a clip-on for traditional scopes using an adaptor, and a compact handheld spotter. The FT34 offers a 384x288 thermal resolution, ≤25mK NETD, 12μm pixel pitch, and a 1024x768 OLED display, allowing target identification up to 1200yds. It supports five thermal display colors, a 50 Hz refresh rate, and runs up to 5 hours on a removable 18650 battery. It operates in -4° to 122°F and is IP67 rated for dust and water protection. Additional features include One-Shot Zero, PIP mode, Blind Pixel correction, Time/Date stamp, Auto Hot target tracking, Wi-Fi, video recording, and 128GB Micro SD storage.
- Models:
- FT34/FT34-LRF
- Heading:
- Sensor
- Type:
- Uncooled VOx(vanadium oxide)
- Resolution(px):
- 384*288
- Pixel Size(µm):
- 12*12
- NETD:
- ≤25mK（0.025℃）
- Frame Rate(Hz):
- 50
- Human Detection Distance(m):
- 1400
- Vehicle Detection Distance(m):
- 2600
- Heading:
- Optics
- FT34 Optics Purpose:
- RifleScope/Monocular
- FT34-LRF Optics Purpose:
- Clip-on
- Objective Lens(mm):
- 35
- FT34 Optical Magnification(x):
- 3.5
- FT34-LRF Optical Magnification(x):
- 1
- FT34 Digital Zoom(x):
- 2/4/6/8
- FT34-LRF Digital Zoom(x):
- N/A
- Horizontal Field of view (HxV):
- 7.5°
- Vertical Field of view (HxV):
- 5.6°
- Diagonal Field of view (HxV):
- 9.4°
- FT34 Eye Relief(mm):
- 30
- FT34-LRF Eye Relief(mm):
- N/A
- FT34 Diopter Adjustment:
- - 5D~+5D
- FT34-LRF Diopter Adjustment:
- N/A
- Heading:
- Display
- FT34 Display Purpose:
- RifleScope/Monocular
- FT34-LRF Display Purpose:
- Clip-on
- Type:
- OLED
- Resolution(px):
- 1440*1080
- FT34 Reticle Style:
- 6
- FT34-LRF Reticle Style:
- N/A
- FT34 Reticle Color:
- Red/White/Yellow/Green
- FT34-LRF Reticle Color:
- N/A
- FT34 Scene Mode:
- City/Rain/Forest
- FT34-LRF Scene Mode:
- N/A
- Image Mode:
- WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
- Heading:
- Photo / Video
- Photo Resolution(px):
- 2592*1944
- Photo Format:
- .JPG
- Video Resolution(px):
- 1024*768
- Video Format:
- .mp4
- Storage:
- TF card(128 GB,Max)
- Image Engine:
- Pard IREA
- Heading:
- Main function
- FT34 Main function Purpose:
- RifleScope/Monocular
- FT34-LRF Main function Purpose:
- Clip-on
- LRF Detection Range:
- 1097m/1200yds
- FT34 Ballistic Calculator:
- Yes
- FT34-LRF Ballistic Calculator:
- N/A
- FT34 PIP:
- Yes
- FT34-LRF PIP:
- N/A
- Self-motivated Recording:
- Yes
- Loop Recording:
- Yes
- Shutter:
- Mechanical Shutter
- Microphone:
- Yes
- Illuminator(LM):
- 100
- Firmware Upgrade:
- Yes
- Heading:
- Connections
- USB Tpye-C:
- Yes
- WiFi:
- Yes
- Supported Apps:
- PardVision
- Heading:
- Power Supply
- Battery Type:
- Lithium Ion 18650
- Output Voltage(V):
- 3.7
- Operating Time(h):
- ≤5
- External Power Supply:
- Type-C
- Heading:
- Environmental characteristic
- Protective Class:
- IP67
- Operating Temp:
- --4℉~122℉
- Recoil Resistance(J):
- 6000
- Heading:
- Material
- Housing:
- Aluminum Alloy
- Heading:
- Measurement
- Product Dimension(L x W x H, mm):
- FT3-Lens 142*60*77; FT3-Adapter 154*79*82 FT3-LRF-Lens 150*60*80; FT3-LRF-Adapter 165*79*84
- N.W/pcs(with/without battery, g):
- FT3-Lens 370(w/o battery) 415(w/ battery) FT3-Adapter 480(w/o battery) 525(w/ battery) FT3-LRF-Lens 417(w/o battery) 464(w/ battery) FT3-LRF-Adapter 435(w/o battery) 482(w/ battery)
