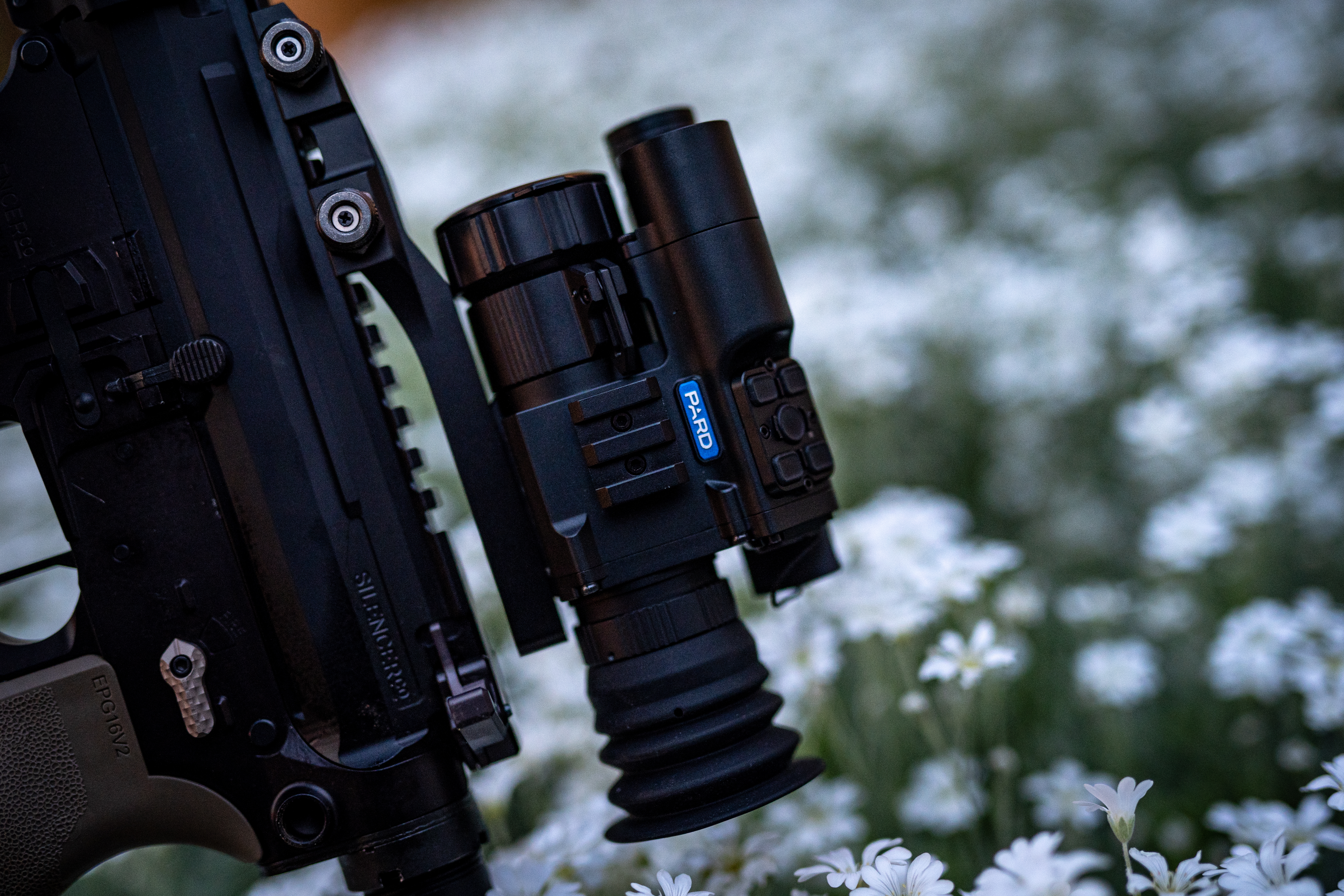

The FD1-LRF features a 1920×1080 CMOS sensor paired with a sharp 1440×1080 OLED display, delivering crisp, detailed night vision imagery. Its integrated laser rangefinder and ballistic calculator enable precise shot placement for confident long-range engagements.
The built-in IR illuminator extends visibility up to 380 yards, while picture-in-picture (PIP) zoom allows for enhanced situational awareness. The FD1-LRF also includes recoil-activated video recording, capturing key moments automatically.
Built for durability and portability, the FD1-LRF is IP67-rated, shockproof up to 6000 J, and compact enough for easy transport. Its all-in-one design ensures reliable, professional-grade night vision in any field environment.
- Models:
- FD1/FD1-LRF
- Classification:
- Digital Night Vision Front Clip-on
- Heading:
- Sensor
- Type:
- CMOS
- Resolution(px):
- 1920*1080
- Pixel Size(µm):
- 2.9
- Frame Rate(Hz):
- Color:60/B&W:30
- Image Engine:
- PARD VLEA
- Heading:
- Optics
- Optics FD1 Purpose:
- RifleScope/Monocular
- Optics FD1-LRF Purpose:
- Clip-on
- Objective Lens(mm):
- 30
- FD1 Optical Magnification(x):
- 3.5
- FD1-LRF Optical Magnification(x):
- 1
- FD1 Digital Zoom(x):
- 2
- FD1-LRF Digital Zoom(x):
- N/A
- Field of view (HxV) Horizontal:
- 7.9
- Field of view (HxV) Vertical:
- 5.9
- Field of view (HxV) Diagonal:
- 9.9
- FD1 Eye Relief(mm):
- 30
- FD1-LRF Eye Relief(mm):
- N/A
- FD1 Diopter Adjustment:
- - 5D~+5D
- FD1-LRF Diopter Adjustment:
- N/A
- Heading:
- Display
- Display FD1 Purpose:
- RifleScope/Monocular
- Display FD1-LRF Purpose:
- Clip-on
- Type:
- OLED
- Resolution(px):
- 1440*1080
- Reticle Style:
- 6
- FD1 Reticle Color:
- Red/White/Yellow/Green
- FD1-LRF Reticle Color:
- N/A
- Display Image Mode:
- Color /Mono
- Heading:
- Photo / Video
- Photo Resolution(px):
- 2592*1944
- Photo Format:
- .JPG
- Video Resolution(px):
- TBD
- Video Format:
- .mp4
- Storage:
- TF card(128 GB,Max)
- Heading:
- Main function
- FD1 Main function Purpose:
- RifleScope/Monocular
- FD1-LRF Main function Purpose:
- Clip-on
- LRF Detection Range:
- 1200yd
- FD1 Ballistic Calculator:
- Yes
- FD1-LRF Ballistic Calculator:
- N/A
- FD1 PIP:
- Yes
- FD1-LRF PIP:
- N/A
- Self-motivated Recording:
- Yes
- Loop Recording:
- Yes
- Microphone:
- Yes
- IR Wavelength(nm):
- 850/940
- IR Illuminating Level:
- 3 Levels
- Heading:
- Connections
- USB Tpye-C:
- Yes
- WiFi:
- Yes
- Supported Apps:
- PardVision
- Heading:
- Power Supply
- Battery Type:
- Lithium Ion 18650
- Output Voltage(V):
- 3.7
- Operating Time(h):
- ≤8
- External Power Supply:
- Type-C
- Heading:
- Environmental characteristic
- Protective Class:
- IP67
- Operating Temp:
- --4℉~122℉/-20℃~50℃
- Recoil Resistance(J):
- 6000
- Heading:
- Material
- Housing:
- Aluminum Alloy
