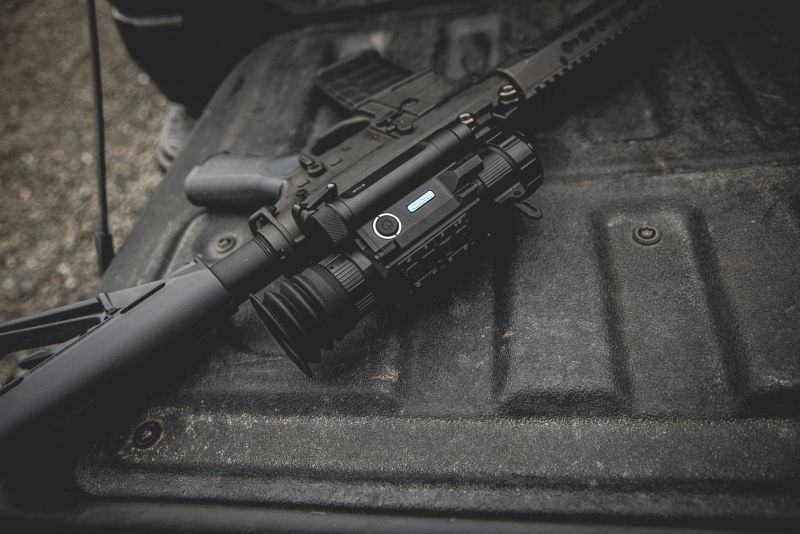

The Ocelot 256 19mm thermal monocular offers a compact and ergonomic design, weighing just 14.8 ounces and measuring 182 × 68 × 79mm for easy handling in the field. Equipped with a high-sensitivity sensor (NETD ≤ 25mK), it delivers clear thermal images even in low-contrast environments. The variable magnification ranges from 3.2x to 25.6x, providing flexibility for both close-up observation and long-range spotting.
- Heading:
- Thermal Sensor
- Type:
- Uncooled VOx(vanadium oxide)
- Resolution(pixel):
- 256*192
- Pixel Size(µm):
- 12*12
- NETD:
- ≤25mK（ 0.025℃)
- Frame rate(Hz):
- 50
- Human Detection Distance(m):
- 900
- Heading:
- Optics
- Objective Lens(mm):
- 19
- Optical Magnification(x):
- 3.2
- Digital Zoom(x):
- 2/4/6/8
- Field of View (Horizontal):
- 9.2°
- Field of View (Vertical):
- 6.9°
- Field of View (Diagonal):
- 11.5°
- Focus range:
- 3m-∞
- Diopter adjustment(D):
- -5~5
- Eye Relief(mm):
- 30
- Heading:
- Display
- Type:
- OLED
- Resolution(pixel):
- 1024*768
- Reticle Style:
- 5
- Reticle Color:
- 4(Red/White/Yellow/Green)
- Scene Mode:
- City/Rain/Forest
- Image Mode:
- WT-HOT/BK-HOT/IN-HOT/RD-HOT/SKY
- Heading:
- Photo / Video
- Photo resolution(pixel):
- 1024*768
- Photo Format:
- .JPG
- Video Resolution(pixel):
- 1024*768
- Video Format:
- .mp4
- Image Engine:
- Pard IREA
- Heading:
- Main function
- LRF Detection Range(yd/m):
- -
- PIP:
- Yes
- Gyroscope:
- Yes
- Loop Recording:
- Yes
- E-compass:
- Yes
- Storage(GB):
- Built-in EMMC (32 GB)
- Shutter:
- Mechanical shutter
- Microphone:
- Yes
- Firmware Upgrade:
- Yes
- Heading:
- Connections
- USB Tpye-C:
- Yes
- WiFi:
- Yes
- Supported Apps:
- PardVision2
- Heading:
- Power Supply
- Battery Type:
- Lithium Ion 18650
- Output Voltage(V):
- 3.7
- Operating Time(h):
- ≤5
- External Power Supply:
- Type-C
- Heading:
- Environmental characteristic
- Protective Class:
- IP67
- Operating Temp(°C/°F):
- -30 ~ +55 / -22 ~ +131
- Heading:
- Material
- Housing:
- Aluminium Alloy
- Objective Lens:
- All-glass multi-coated lens
- Heading:
- Measurement
- Product Dimension(with LRF, L * W * H, mm):
- 180*65*40
- N.W/pcs(with LRF&battery, g):
- 420
