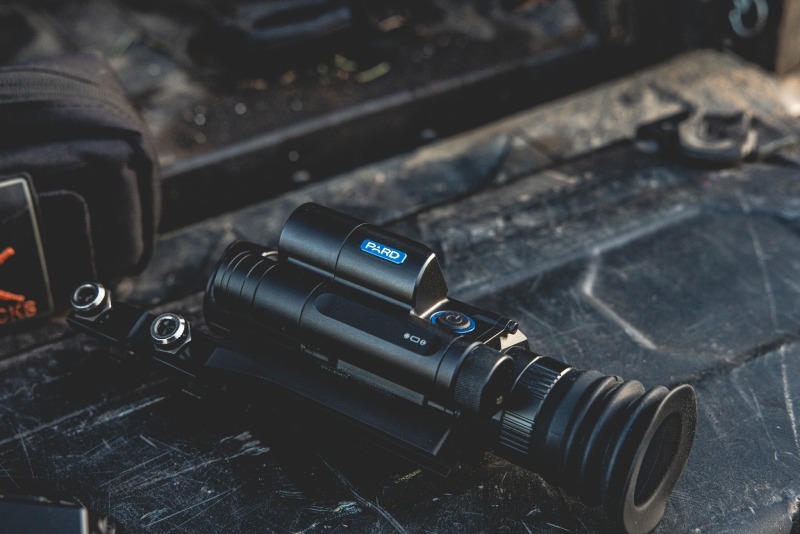

The NV008SP2/LRF features a 2688 × 1520 CMOS sensor with 0.001 lux sensitivity for sharp performance in low-light conditions. Its compact design weighs just 17.5 oz and measuring 6.9 x 2.8 x 2.2". With 6.5x to 13x magnification and a picture-in-picture (PIP) mode up to 26x, it also includes a built-in 1200-yard laser range finder (LRF) and ballistic calculator to support confident long-range engagement.
- Models:
- NV008SP2 / NV008SP2-LRF
- Classification:
- Night Vision(scope)
- Heading:
- Sensor
- Type:
- CMOS
- Resolution(pixel):
- 2688*1520
- Pixel size(um):
- 2.9
- Sensitivity(lux):
- 0.001
- Frame rate(fps):
- Color mode:60/Mono:30
- Image Engine:
- PARD VLEA
- Heading:
- Optics
- Objective lens(mm):
- 50/70
- Optical Magnification(x):
- 4.5x/6.5x
- Digital zoom(x):
- 2x
- Continuous digital zoom:
- 4.5-9x/6.5-13x
- Field of view (HxV) Horizontal:
- 6.4º/ 4.6º
- Field of view (HxV) Vertical:
- 4.8º/ 3.4º
- Field of view (HxV) Diagonal:
- 8.6º/ 5.7º
- Focus range:
- 3m-∞
- Eye relief(mm):
- 35
- Exit pupil(mm):
- 6
- Diopter adjustment(D):
- ± 5
- Heading:
- IR Illuminator
- IR Type:
- VCSEL
- IR power:
- 5W
- IR illuminating level:
- 3 Level
- IR distance(m):
- 350
- IR Wavelength(nm):
- 850/940
- Heading:
- Display
- Type:
- OLED
- Resolution(pixel):
- 1440*1080
- Reticle Style:
- 6
- Reticle Color:
- white/yellow/green
- Color mode:
- Color/Black&white
- Heading:
- Photo / Video
- Photo resolution(pixel):
- -
- Photo format:
- -
- Video resolution(pixel):
- 1440*1080
- Video format:
- MP4
- Storage(GB):
- Micro SD card (128GB)
- Heading:
- Main function
- Red dot:
- Yes
- Mute button:
- Yes
- PIP:
- Yes
- LRF detection range(yds):
- 1200(LRF version)
- Ballastic caculator:
- Yes
- Range unit selection:
- meter/yard
- Gyroscope:
- Yes
- Self-activated recording:
- Yes
- Auto recording:
- Yes
- Loop recording:
- Yes
- Time stamp:
- Yes
- Record audio:
- Yes
- Beep sound:
- Yes
- Exposure compensation:
- Yes
- Heading:
- Connections
- USB Type-C:
- Yes
- WiFi:
- Yes
- Supported Apps:
- PardVision
- Heading:
- Power Supply
- Battery type:
- Lithium Ion18650
- Output voltage(V):
- 3.7
- Operating time(h,max):
- 8
- External power supply(V):
- USB Type-C
- Heading:
- Environmental characteristic
- Degree of protection:
- IP67
- Operating temp(°C):
- -20 – 50
- Recoil Power(J):
- 6000
- Heading:
- Measurement
- Product dimension(L x W x H, mm):
- 175 x 70 x 55
- N.W/pcs(with/without battery, g):
- 495/450
