The TS34-LRF and TS36-LRF Thermal Scopes combine high-sensitivity thermal sensors with an 800x800 IPS LCD display to provide crisp, high-contrast imaging. Both models are available with 35mm or 45mm lenses, optical and digital zoom, 12μm pixel pitch, and ≤25mK NETD, ensuring clear detection even in low-contrast environments.
The integrated 1200-yard laser rangefinder feeds the onboard ballistics calculator, enabling precise point-of-impact adjustment. Picture-in-Picture (PI) mode provides a 2x magnified inset for better target monitoring. Users can select from 6 reticle styles, 4 colors, and 6 thermal modes for maximum situational flexibility.

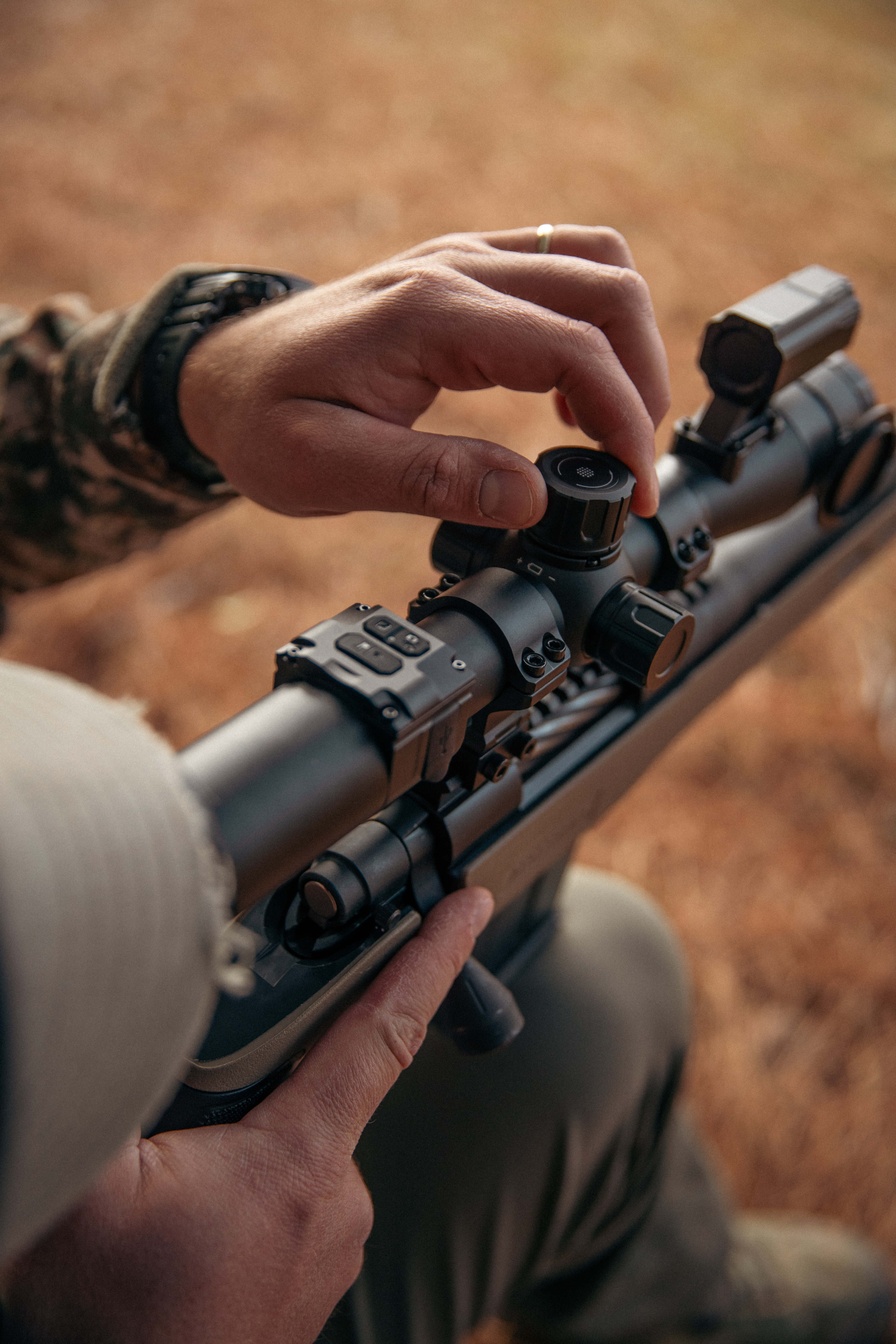

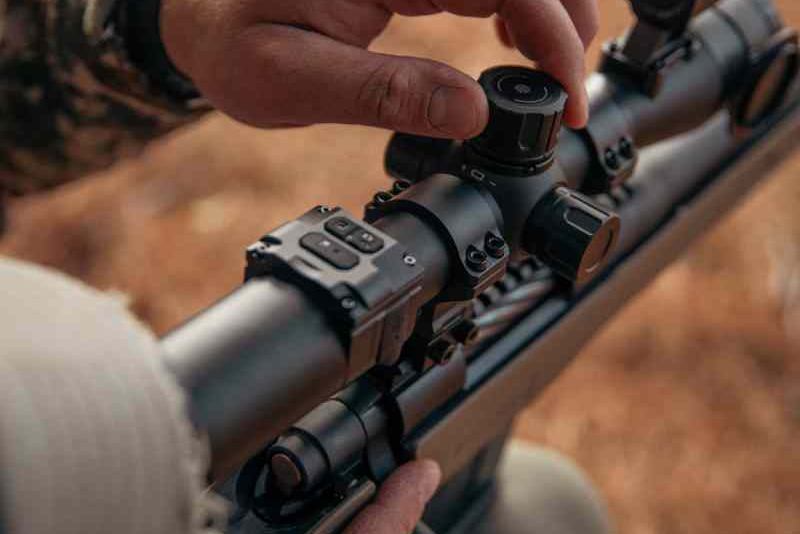

The TS scopes auto-record 20-second video clips to a 128GB micro SD card, and feature Wi-Fi, USB-C, and HDMI outputs for easy file access. Built with IP67 weatherproofing, recoil resistance, a gyroscope, and a multi-function control knob, these scopes are both rugged and intuitive. Powered by 18650 lithium batteries, each unit weighs just 24oz (680g) for effortless portability.
Model Differences
The TS34-LRF features a 384x288 thermal sensor, delivering reliable performance and clear contrast for mid-range scanning and tactical operations. Its lightweight design and balanced optics make it ideal for users who value portability and field efficiency.
The TS36-LRF upgrades to a 640x480 Vox sensor, offering enhanced image clarity, finer thermal detail, and extended detection range. Perfect for professional users requiring premium precision and high-resolution target identification in complex environments.
- Models:
- TS34/TS34-LRF, TS36/TS36-LRF
- Heading:
- Sensor
- Type:
- Uncooled VOx(vanadium oxide)
- TS34/TS34-LRF Resolution(px):
- 384*288
- TS36/TS36-LRF Resolution(px):
- 640*480
- Pixel size(µm):
- 12*12
- NETD(mK):
- ≤25（0.025℃）
- Frame rate(Hz):
- 50
- TS34/TS34-LRF Human detection distance(m):
- 800/1100/1400/1700
- TS36/TS36-LRF Human detection distance(m):
- 1800/2200/2600/3000
- TS34/TS34-LRF Vehicle detection distance(m):
- 1800/2200/2600/3000
- TS36/TS36-LRF Vehicle detection distance(m):
- 2500/2900/3300
- Heading:
- Optics
- TS34/TS34-LRF Objective Lens(mm):
- 19/25/35/45
- TS36/TS36-LRF Objective Lens(mm):
- 25/35/45
- TS34/TS34-LRF Optical Magnification(x):
- 2/2.6/3.7/4.7
- TS36/TS36-LRF Optical Magnification(x):
- 1.6/2.2/2.8
- Digital Zoom(x):
- 2/4/6/8
- TS34/TS34-LRF Field of view (HxV) Horizontal:
- 10.4°/7.9°/5.6°/4.4°
- TS36/TS36-LRF Field of view (HxV) Horizontal:
- 13.1°/9.4°/7.3°
- TS34/TS34-LRF Field of view (HxV) Vertical:
- 10.4°/7.9°/5.6°/4.4°
- TS36/TS36-LRF Field of view (HxV) Vertical:
- 13.1°/9.4°/7.3°
- TS34/TS34-LRF Field of view (HxV) Diagonal:
- 14.7°/11.2°/8°/6.3°
- TS36/TS36-LRF Field of view (HxV) Diagonal:
- 18.5°/13.3°/10.4°
- Eye Relief(mm):
- 100
- Diopter Adjustment(D):
- -3D~+5D
- Heading:
- Display
- Type:
- IPS LCD
- Resolution(px):
- 800*800
- Reticle Style:
- 6
- Reticle Color:
- 4(Red/White/Yellow/Green)
- Scene Mode:
- City/Rain/Forest
- Image mode:
- WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
- Heading:
- Photo / Video
- Photo Resolution(px):
- 1536*1536
- Photo Format:
- .JPG
- Video Resolution(px):
- 768*768
- Video Format:
- .mp4
- Storage(GB):
- TF card(128 )(Max)
- Image Engine:
- Pard IREA
- Heading:
- Main function
- LRF detection range(yds):
- 1200
- Ballistic Calculator:
- Yes
- PIP:
- Yes
- Hot Track:
- Yes
- Gyroscope:
- Yes
- Self-motivated recording:
- Yes
- Loop Recording:
- Yes
- E-compass:
- Yes
- Shutter:
- Mechanical shutter
- Microphone:
- Yes
- Firmware Upgrade:
- Yes
- Heading:
- Interfaces
- USB Tpye-C:
- Yes
- HDMI Output:
- Yes
- Heading:
- Connections
- WiFi:
- Yes
- Supported Apps:
- PardVision
- Heading:
- Power Supply
- Battery Type:
- Lithium Ion 18650*1
- Output Voltage(V):
- 3.7
- Operating Time(h):
- ≤5
- External power supply(V):
- Type-C
- Heading:
- Environmental characteristic
- Degree of protection:
- IP67
- Operating Temp(°C):
- -4℉~122℉
- Recoil Resistance(J):
- 6000
- Heading:
- Material
- Housing:
- Aluminium Alloy
- Objective Lens:
- All-glass multi-coated lens
- Heading:
- Measurement
- Product Dimension(L x W x H, mm):
- 350*88*95(W/O Long Eyepiece) 410*88*95(W/ Long Eyepiece)
- N.W/pcs(with/without battery, g):
- 680(W/O Battery);725(W/ Battery)
