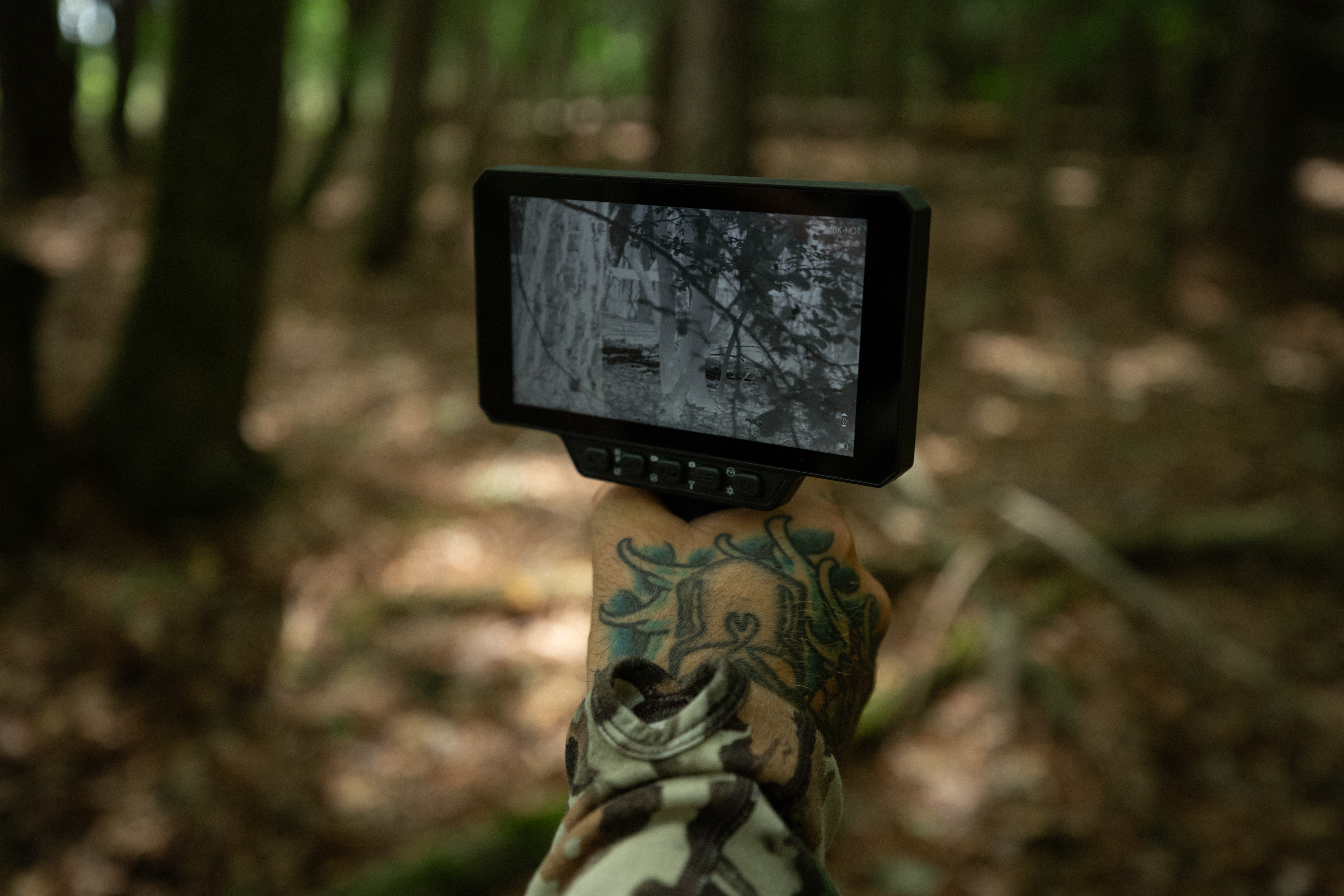

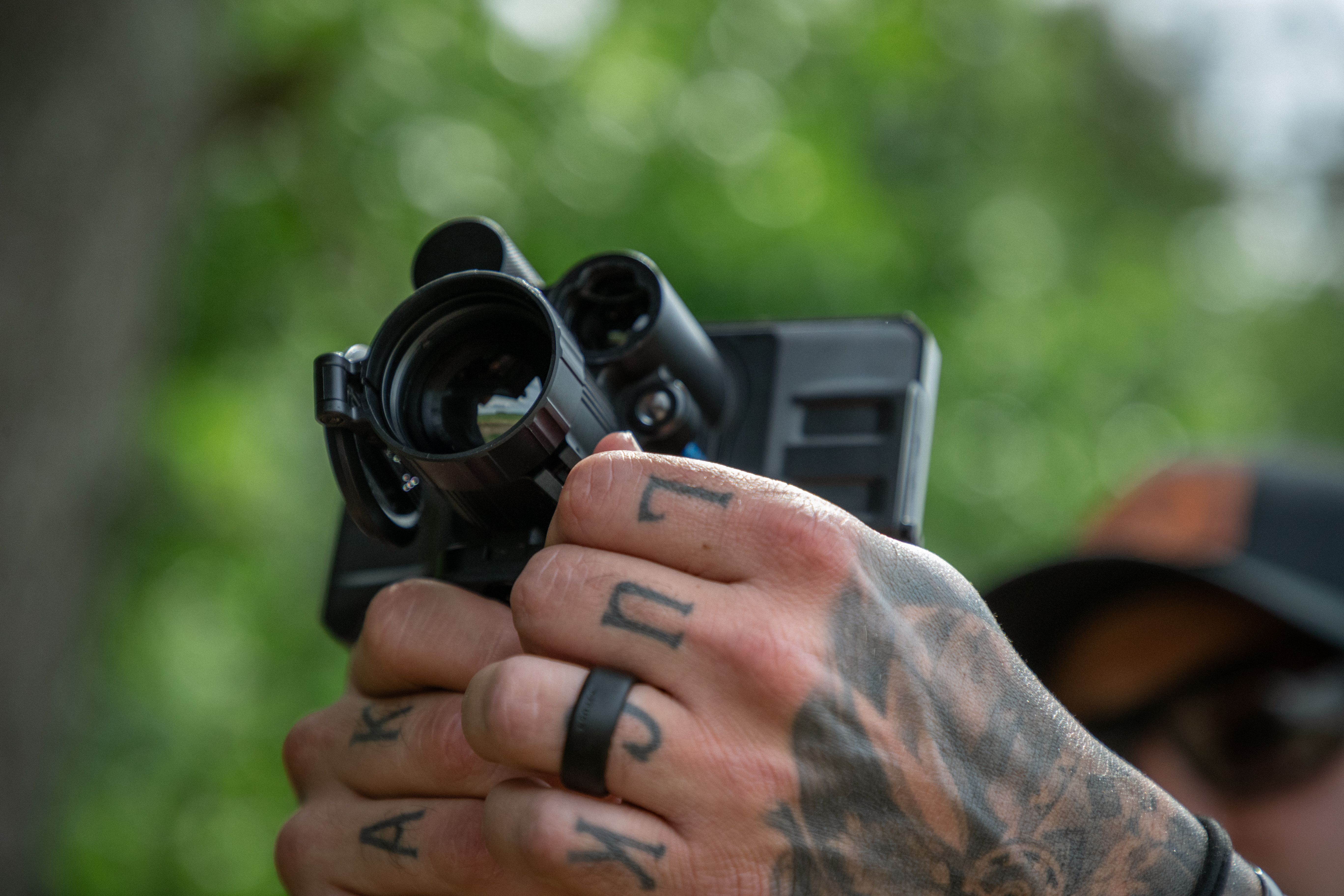

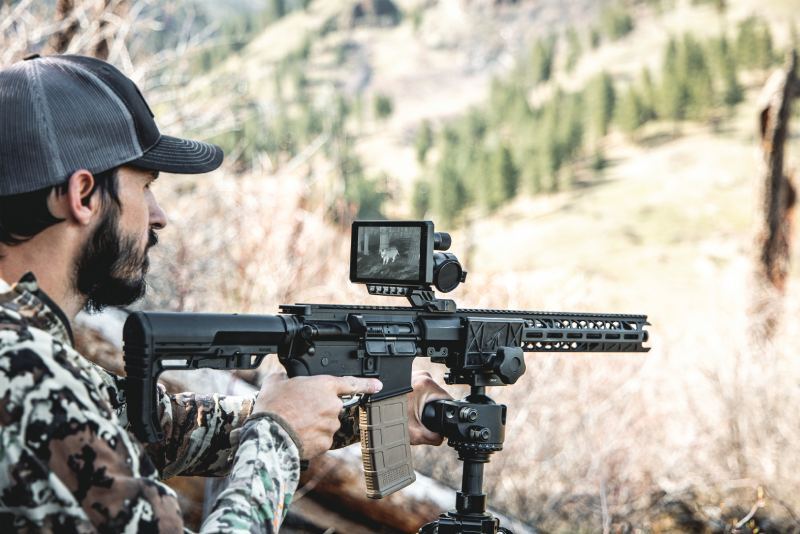

The Sphinx 384-35 and 640-35 are multi-functional thermal devices designed for use as handheld or attachable to a rifle—with the 384-35 featuring a 384×288 sensor and the 640-35 offering a higher-resolution 640×512 sensor. Each model includes a built-in 1200-yard LRF and ballistic calculator, large 5″ LCD display, durable IP67-rated housing, dual battery design, and full video recording and wireless connectivity, making them versatile and ready for the field!
- Models:
- Sphinx 384, Sphnix 640
- Classification:
- Multi-Purpose Thermal Imaging Handheld Camera
- Heading:
- Sensor
- Sensor Type:
- Uncooled VOx(vanadium oxide)
- Sphinx 384 Sensor Resolution(px):
- 384*288
- Sphnix 640 Sensor Resolution(px):
- 640*512
- Pixel Size(µm):
- 12*12
- NETD:
- ≤20mK（0.020℃）
- Frame Rate(Hz):
- 50
- Detection Distance(m):
- 1800
- Heading:
- Optics
- Objective Lens(mm):
- 35
- Sphinx 384 Optical Magnification(x):
- 2.5
- Sphnix 640 Optical Magnification(x):
- 2
- Digital Zoom(x):
- 2/4/6/8
- Sphinx 384 Field of view (HxV) Horizontal:
- 9.4°
- Sphnix 640 Field of view (HxV) Horizontal:
- 12.5°
- Sphinx 384 Field of view (HxV) Vertical:
- 7.1°
- Sphnix 640 Field of view (HxV) Vertical:
- 10.0°
- Sphinx 384 Field of view (HxV) Diagonal:
- 11.8°
- Sphnix 640 Field of view (HxV) Diagonal:
- 16.0°
- Heading:
- Display
- Type:
- LCD
- Resolution(px):
- 1280*720
- Reticle Style:
- 6
- Reticle Color:
- Red/White/Yellow/Green
- Scene Mode:
- City/Rain/Forest
- Image Mode:
- WhiteHot/BlackHot/RedHot/Fusion1 /Fusion2/IronRed1/IronRed2
- Heading:
- Photo / Video
- Photo Resolution(px):
- 1280*720
- Photo Format:
- .JPG
- Video Resolution(px):
- 1280*720
- Video Format:
- .mp4
- Storage:
- Micro SD card (128 GB,Max)
- Image Engine:
- Pard IREA
- Heading:
- Main function
- LRF Detection Range:
- 1000m/1200yd
- PIP:
- Yes
- Loop Recording:
- Yes
- Microphone:
- Yes
- Firmware Upgrade:
- Yes
- Heading:
- Connections
- USB Tpye-C:
- Yes
- WiFi:
- Yes
- Supported Apps:
- PardVision2
- Heading:
- Power Supply
- Main Device Battery Type:
- Lithium-Ion 18650
- Handle Battery Type:
- Lithium-Ion 21700
- Output Voltage(V):
- 3.7
- Operating Time(h):
- ≤6
- External Power Supply:
- USB Type-C
- Heading:
- Environmental Characteristic
- Environmental Characteristic Protective Class:
- IP67
- Operating Temp(℃):
- -30 ~ +55
- Recoil Resistance(J):
- 6000
- Heading:
- Material
- Housing:
- Aluminum Alloy
