Inspired by your classic LVPO, the all-new Pantera 2560 comes packed with technology and comes ready for the field, right out of the box! The side-focus design offers intuitive adjustment and fast target clarity, while it's lightweight, compact housing structure reduces fatigue and maximizes reaction time. The Pantera 2560 offers precision imaging at entry level. Featuring a 256x192 resolution and 12um pixel pitch, the sensor delivers enhanced thermal contrast and detection clarity, even in the most challenging conditions.
- Model:
- Pantera 256 Q
- Classification:
- Thermal Imaging Scope
- Heading:
- Sensor
- Sensor Type:
- Uncooled VOx(vanadium oxide)
- Sensor Resolution(pixel):
- 256*192
- Pixel size(µm):
- 12*12
- NETD(mK):
- ≤25mK（0.025℃）
- Frame rate(Hz):
- 50
- Detection distance(m):
- 1200
- Heading:
- Optics
- Objective Lens (Focal length/mm):
- 25
- Optical Magnification(x):
- 3.6
- Digital Zoom(x):
- 2/4/6/8
- Horizontal Field of view(°):
- 7
- Vertical Field of view(°):
- 5.3
- Diagonal Field of view(°):
- 8.8
- Horizontal Field of view (m @100m):
- 12.3
- Vertical Field of view (m @100m):
- 9.2
- Focus range:
- 5m-∞
- Eye Relief(mm):
- 50
- Diopter Adjustment(D):
- -5~5
- Heading:
- Display
- Display Type:
- OLED
- Resolution(pixel) Resolution:
- 1920*1080

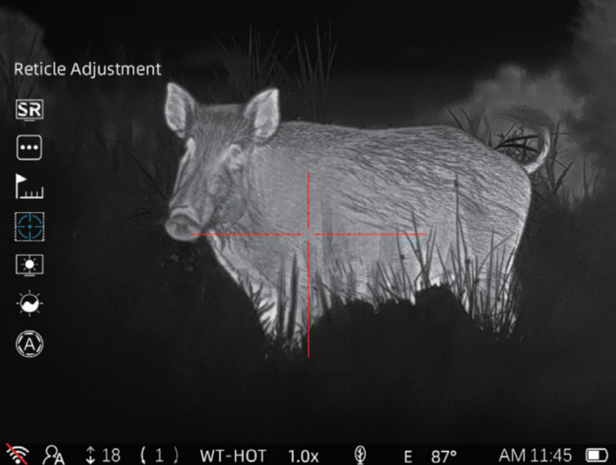

- Reticle Style:
- 6
- Reticle Color:
- Red/White/Yellow/Green
- Scene Mode:
- City/Rain/Forest
- Image Mode:
- WT-HOT/BK-HOT//RD-HOT/IN-HOT/SKY
- Heading:
- Photo / Video
- Photo Resolution(pixel):
- 1024*768
- Photo Format:
- .JPG
- Video Resolution(pixel):
- 1024*768
- Video Format:
- .mp4
- Storage(GB):
- Built-in EMMC (32GB)
- Image Engine:
- Pard IREA
- Heading:
- Main function
- LRF:
- No
- Ballistic Calculator:
- No
- PIP:
- Yes
- Hot Track:
- Yes
- Gyroscope:
- Yes
- Recoil-activated recording:
- Yes
- Loop Recording:
- Yes
- E-compass:
- Yes
- Shutter:
- Mechanical Shutter
- Firmware Upgrade:
- Yes
- Heading:
- Connections
- USB Type-C:
- Yes
- HDMI Output:
- No
- WiFi:
- Yes
- Supported Apps:
- PardVision2
- Heading:
- Power Supply
- Battery Type:
- Lithium Ion 18650*1
- Output Voltage(V):
- 3.7
- Operating Time(h):
- ≤6
- External power supply(V):
- Type-C
- Heading:
- Environmental characteristic
- Degree of protection:
- IP67
- Operating Temp(°C/°F):
- -30 ~ +55 / -22 ~ +131
- Recoil Resistance(J):
- 6000
- Heading:
- Material
- Housing:
- Aluminum Alloy
- Objective Lens:
- All-glass multi-coated lens
- Product Dimension (L * W * H, mm):
- 295*82*70
- N.W/pcs(with battery, g):
- 492
