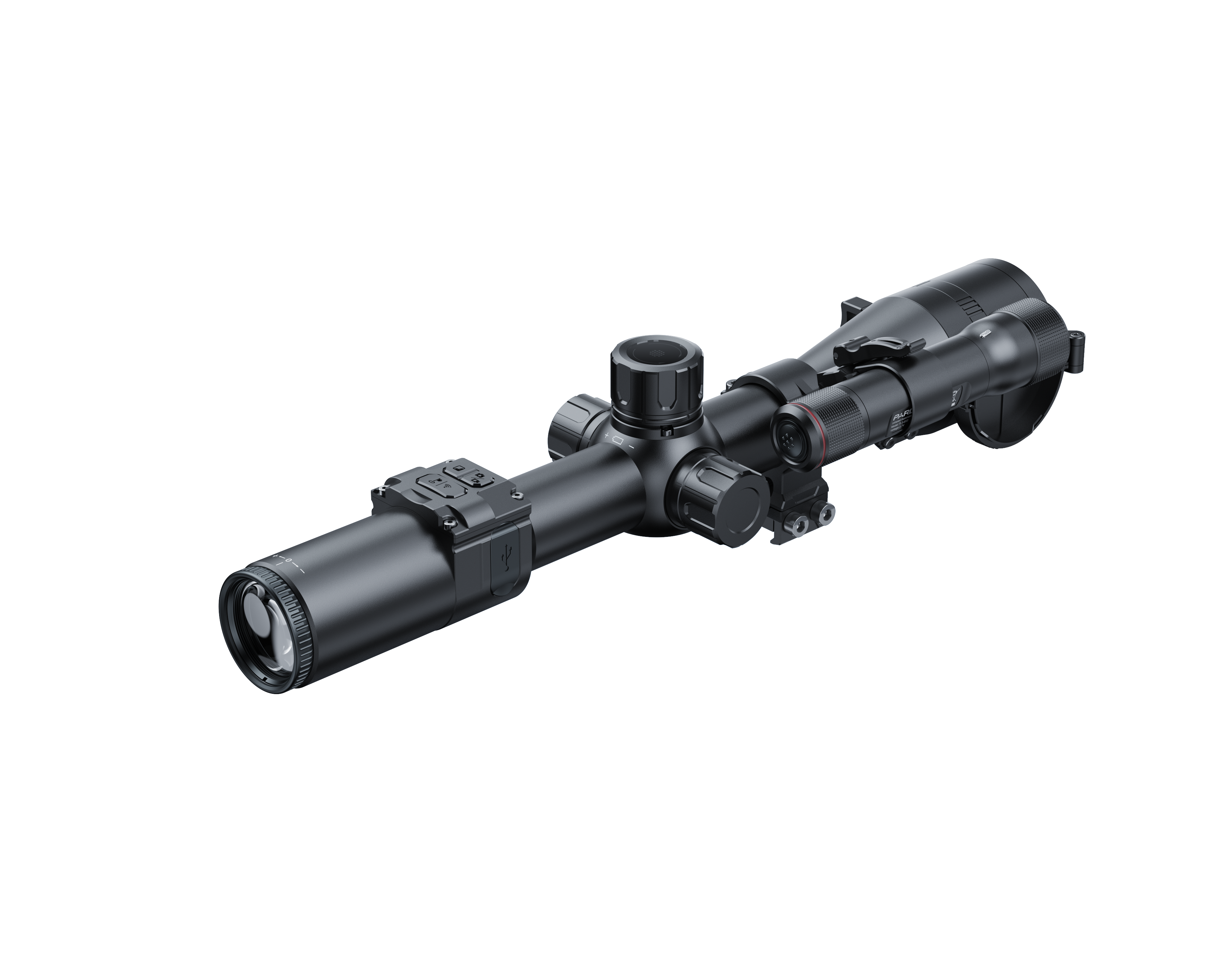

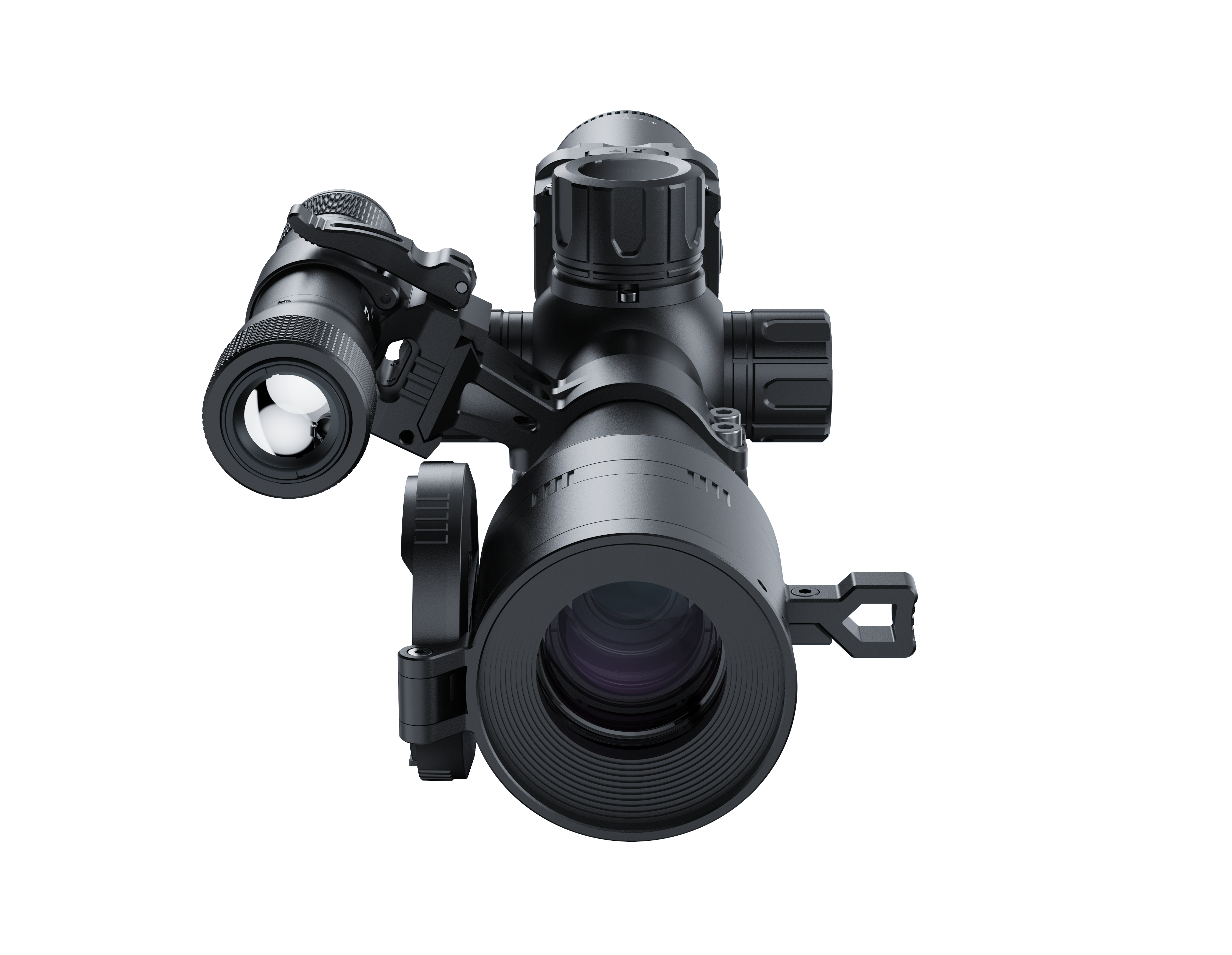

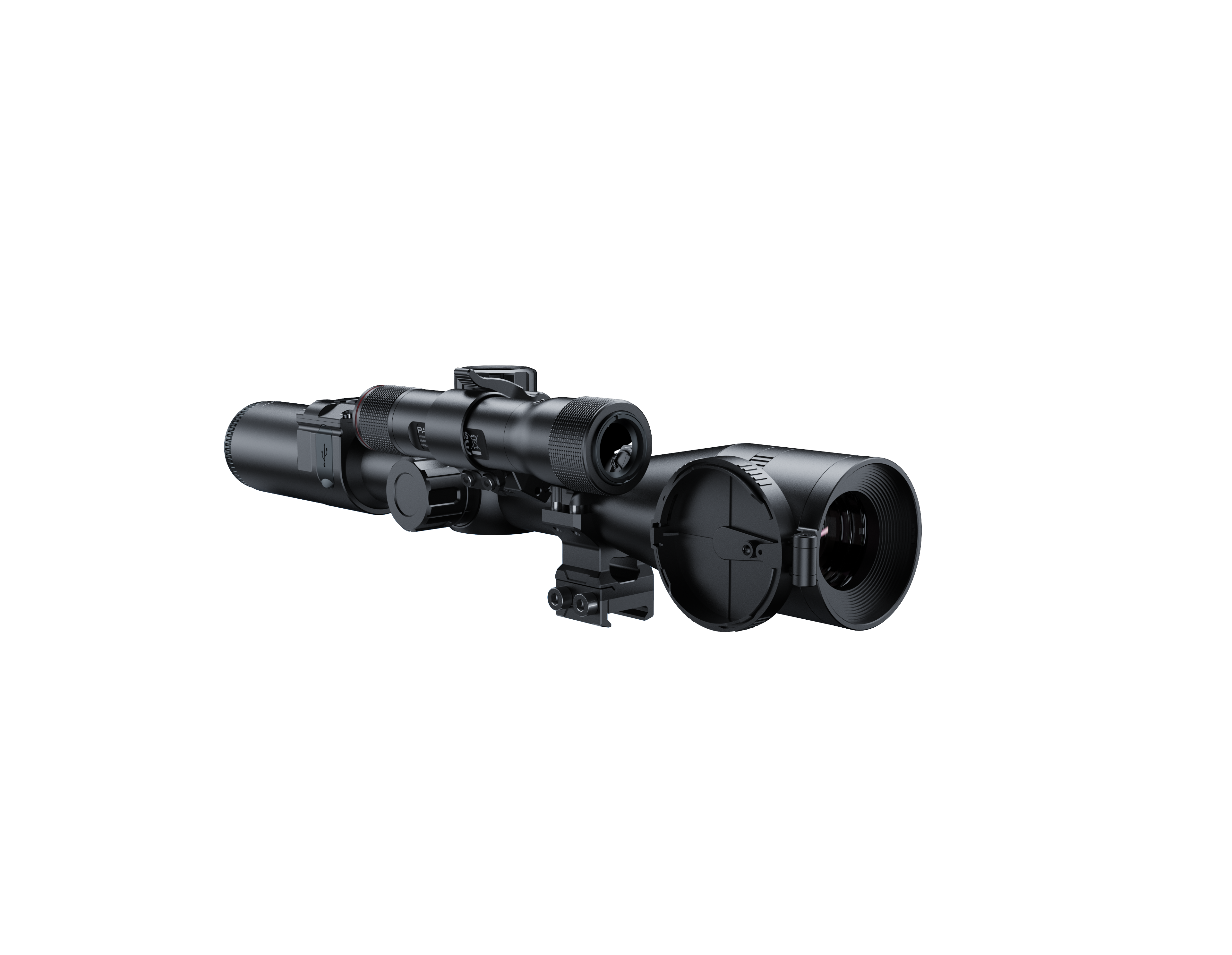

The DS35 + TL3-850 features the world’s first true circular display with 100mm eye relief for comfortable viewing. It is equipped with a high-sensitivity 2560 × 1440 resolution sensor capable of detecting as low as 0.001 lux. The system offers 4x to 16x magnification, with a picture-in-picture (PIP) mode that extends digital zoom up to 32x, delivering crystal-clear vision when it matters most.
- Model:
- DS35/DS35RF PLUS TL3
- Heading:
- Sensor
- Sensor Resolution:
- 2560x1440
- Pixel Size (µm):
- 2.9
- Sensitivity (lux):
- 0.001
- Frame Rate (Hz):
- 30
- Heading:
- Optics
- Objective Lense:
- 70
- Digital Zoom (x):
- 5.6x
- Horizontal Field of View:
- 4.8°
- Vertical Field of View:
- 3.6°
- Diagonal Field of View:
- 5.1°
- Optical Zoom (x):
- 5.6x
- Eye Relief (mm):
- 100
- Heading:
- Display
- Display Resolution:
- 800x800
- Reticle Styles:
- 6
- Reticle Colors:
- white,yellow,green
- Color Modes:
- Color/Mono BW/Mono Green/Mono Yellow
- Heading:
- Photo / Video
- Photo Resolution:
- 1920x1080
- Video Resolution:
- 1920x1080
- Storage:
- Micro SD (128GB MAX)
- LRF Detection Distance (m/yd):
- 1000m/1200yd
- Heading:
- Main function
- Ballistic Calculator:
- Yes
- PIP Mode:
- Yes
- Self-Activated Recording:
- Yes
- Microphone:
- Yes
- Auto Recording:
- Yes
- Heading:
- Interfaces
- USB Type-C:
- Yes
- HDMI Output:
- Yes
- WiFi:
- Yes
- Supported Apps:
- PardVision2
- Heading:
- Power Supply
- Rechargeable Battery:
- Lithium Ion18650x1
- Operating Time (hrs):
- 8
- Weather Proof Rating:
- IP67
- Heading:
- Environment Characteristics
- Operating Temp:
- -4°F-122°F
- Recoil Resistance:
- 1000g
- Heading:
- Material
- Housing:
- Aluminum Alloy
- Objective Lense:
- Glass
- Weight without Battery (g):
- 680g
